SMT paste AE8000 series
Cured at low temperature, this AE8000 series is attached electronic components to various surfaces of materials such as plastic moldings. Unlike solder, the products do not re-melt, realizing high heat resistance that withstand multiple heat histories.
Product details
Applications

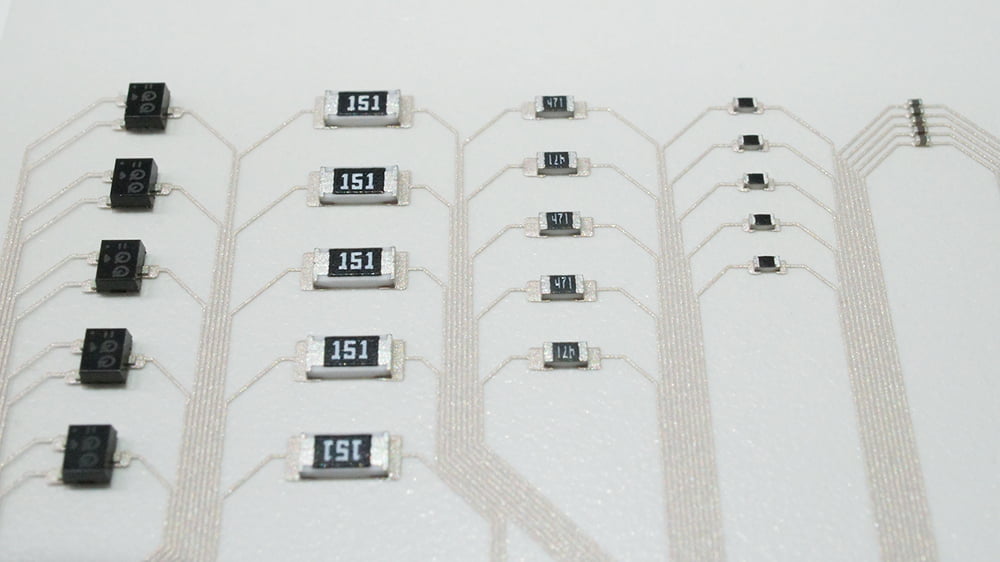

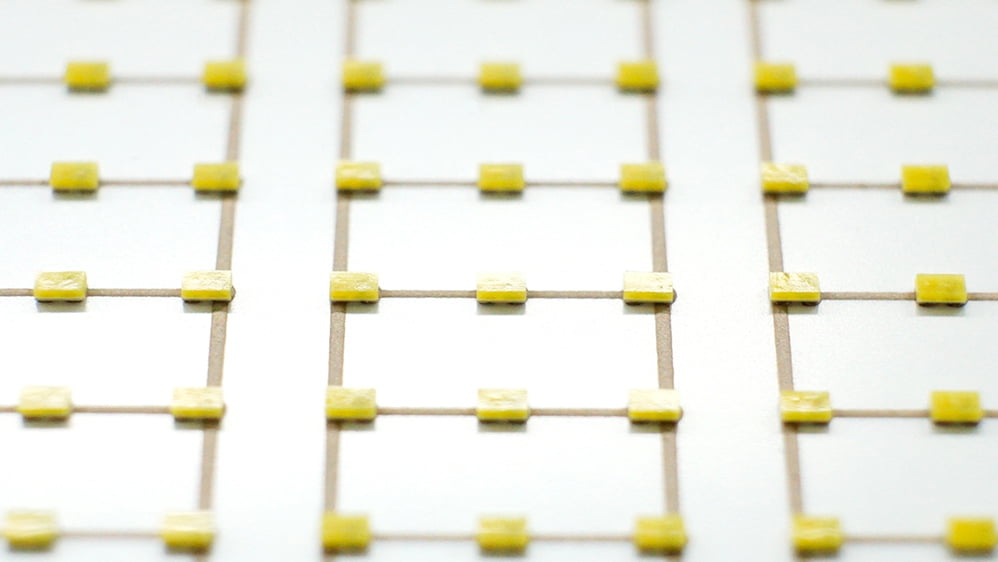

| SMT on low heat resistance substrate (PET) | LED chip mounting on PI |
|---|---|
|
|
Product lineup
| Product name | AE8010L | AE8600 | ||
|---|---|---|---|---|
| Feature | Low temp. curing | High heat resistance | ||
| Viscosity | E type | (5rpm) | 30-45 | 65-85 |
| Curing conditions | Curing | 120°C / 30 min | 160°C / 60 min | |
| Volume resistivity | Ω·㎝ | 1.5E-04 | 5.0E-05 | |
| Die shear strength (Si/Paste/Cu) | N | 140 | 150 | |
Download
If you require more detailed information, please contact us using the information below.
