Via-filling paste (Metal contacting type) AE conductive series

Electrically stable conductivity is achieved by applying a special treatment to the surface of metal particles. This series does not contain solvents, enabling void-less filling. The high thermal conductivities of the products are originated from high loading of metal particles with the proven track record as one of the heat-releasing materials, the pastes are widely used for high-density PWBs and high-speed communication substrates.

Product details

Applications

Thermal via SSD Optical transceiver

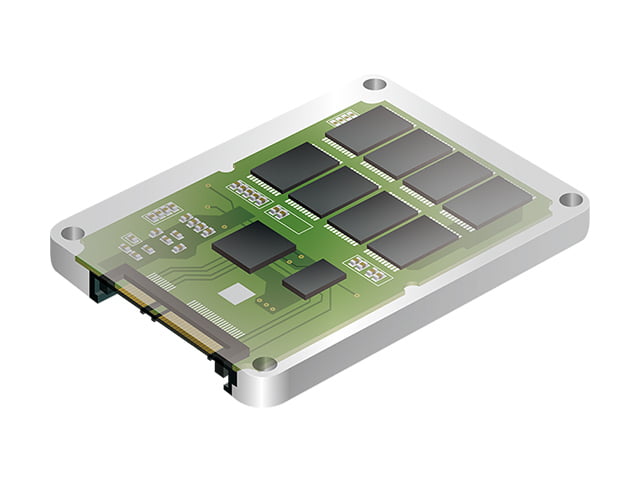

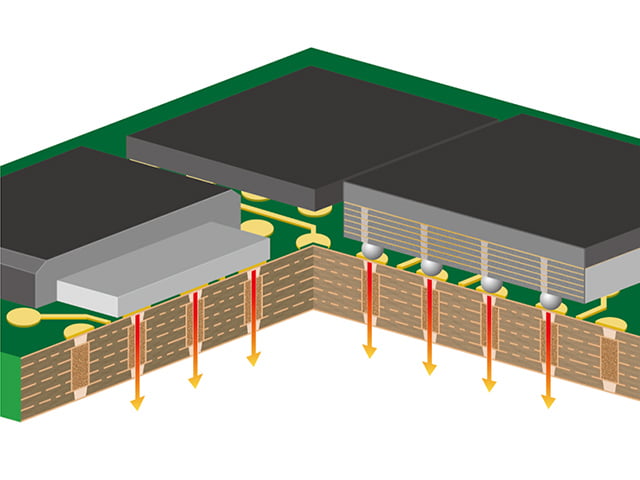

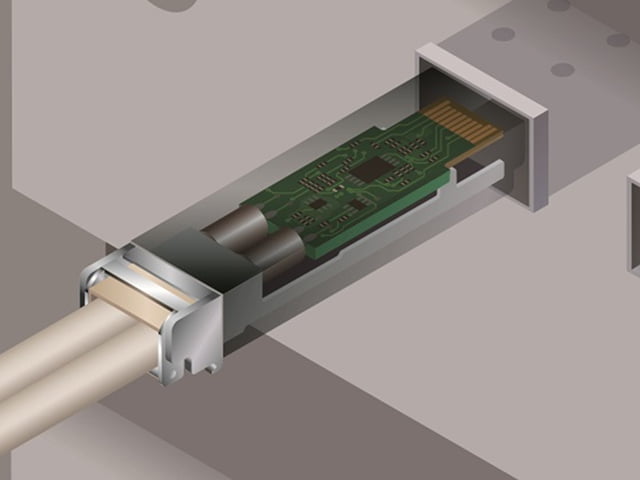

Image: Thermal via Image: SSD Image: Optical transceiver

Product lineup

Product name AE1750 AE2500 AE3030LS AE7332
Feature Small via Standard Hi Tg Hi thermal coductivity
Viscosity BH type dPa·s 1,100-1,900 900-1,700
Curing conditions Pre-curing 90°C / 30 min 80°C / 30 min 90°C / 30 min
Curing 160°C / 60 min
Volume resistivity Ω·㎝ 4.0E-05 4.5E-05 2.0E-04 4.0E-05
Thermal conductivity (Laser flash method) W/m·k 30 25 10 40
Glass transition temperature °C 85 80 185 65

Download

If you require more detailed information, please contact us using the information below.
