Via-filling paste (Non-conductive type) AE1125DS/AE1125HD

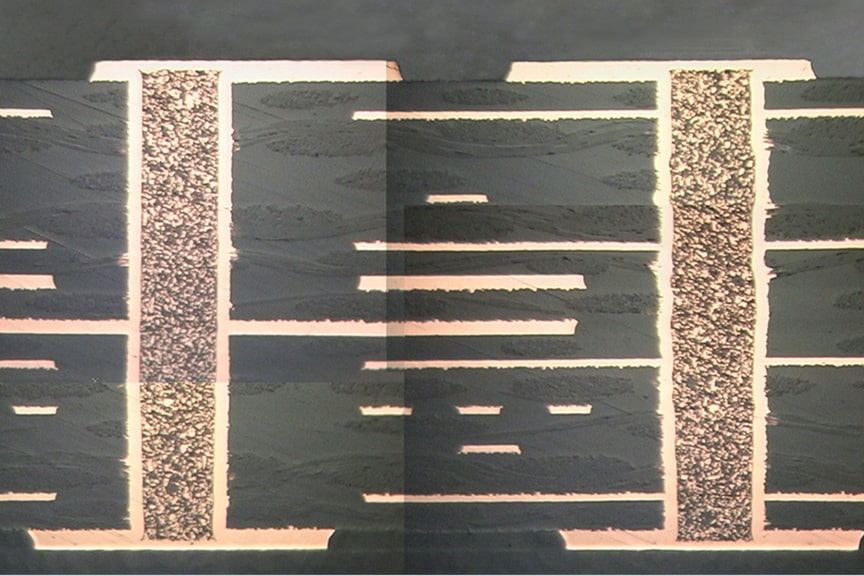

![Via filling paste [Non-conductive type] AE1125DS/AE1125HD](../../../../assets/images/products/electronic-materials/functional-paste/dd_cu/photo_description.jpg)
The non-conductive via filling pastes are used for a wide range of PWBs. Electrically stable insulation is secured by applying a special treatment to the surfaces of copper particles. This series does not contain solvents, enabling void-less filling. The products have been received good reputations in consumer electronics, industrial and automotive products for over the years.
Product details
Applications

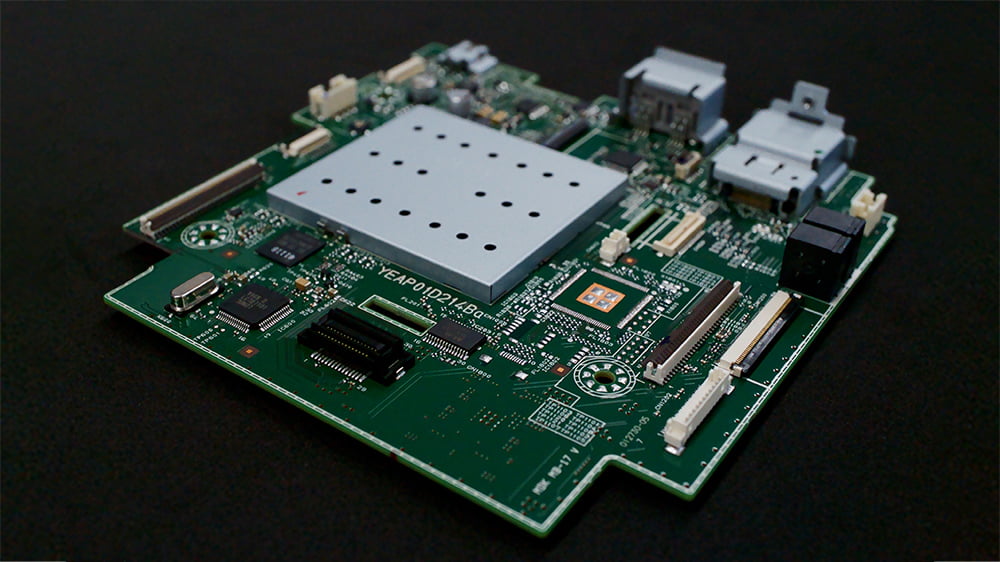

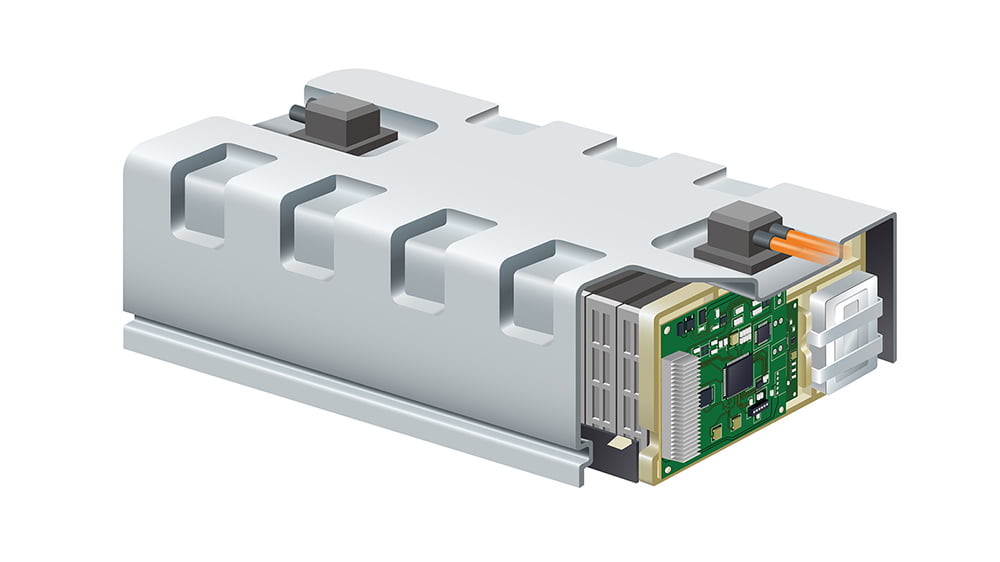

PCB for industrial/automotive | PCB for consumable goods |
---|---|
![]() |
![]() |
Product lineup
Product name | AE1125HD | AE1125DS | ||
---|---|---|---|---|
Viscosity | BH type | dPa·s | 1,200-2,000 | 800-1,600 |
Curing conditions | Pre-curing | 80°C / 30 min | ||
Curing | 160°C / 60 min | |||
Volume resistivity | Ω·㎝ | 1.0E+09-1.0E+12 | ||
Thermal conductivity (Laser flash method) | W/m·k | 1.4 | 1.1 | |
Glass transition temperature | °C | 163 | 210 |
